FASTPCBA Is Professional 20 Years PCB / PCBA Manufactuer, Supply One-Stop Solution: PCB Manufacturing + Components Sourcing + PCB Assembly + Testing.
6 Years
| Ask Lasest Price | |
| Brand Name : | FASTPCBA |
| Model Number : | Prototype PCB Assembly |
| Certification : | ISO13485, IATF16949, ISO9001,IOS14001 |
| Price : | Negotiable (Depends on your gerber and bom) |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 30000pcs/month |
| Delivery Time : | 1-30 work days |

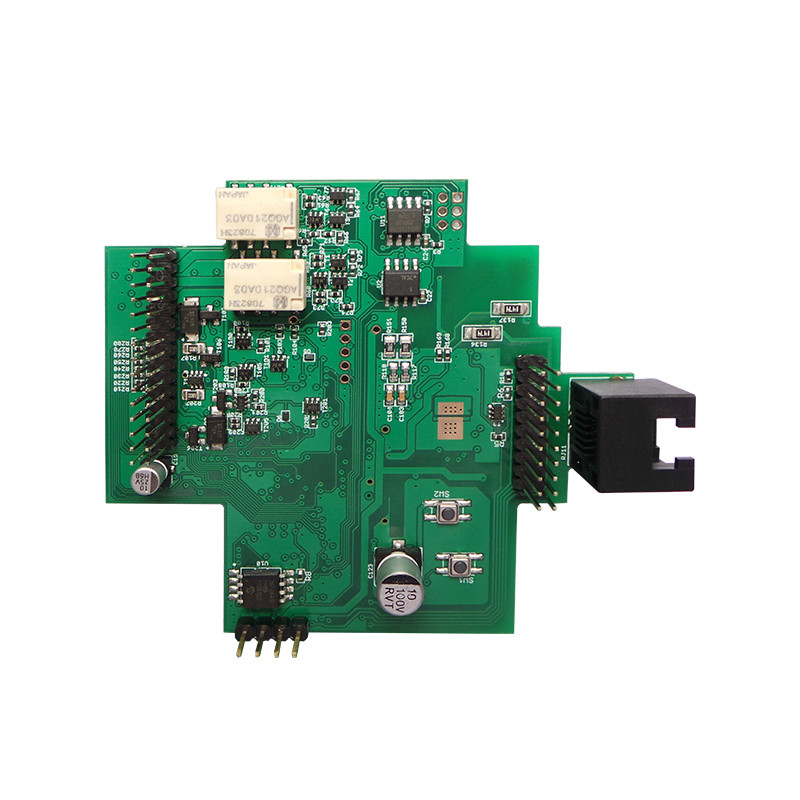

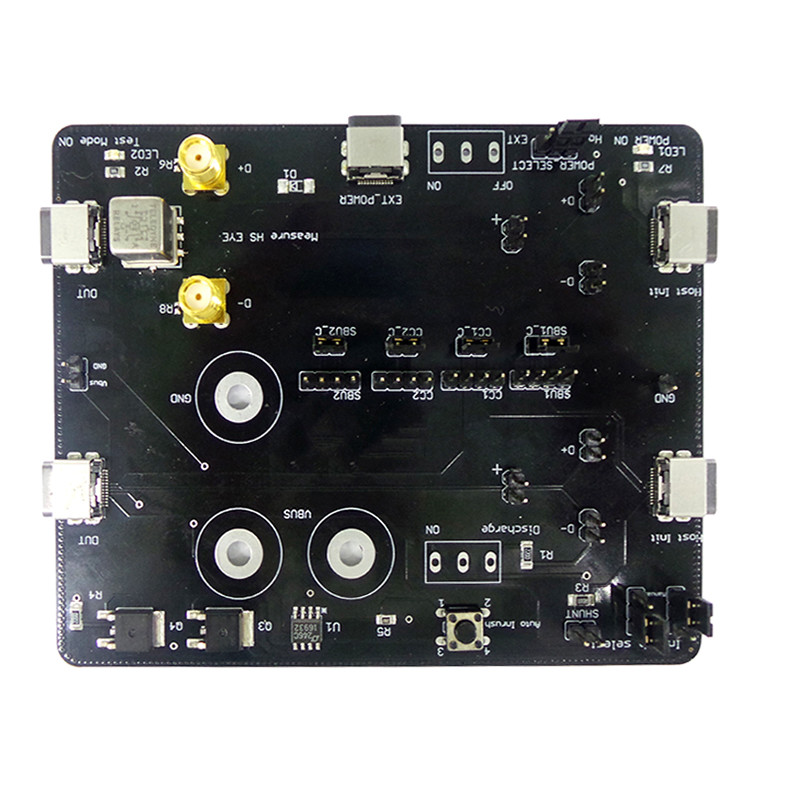

0.075mm PCBA Electronics Main Smd Pcb Assembled Circuit Board
Main Smd Pcb Board Printing Assembled Circuit Board
FASTPCBA is a professional PCB & PCBA manufacturer in Shenzhen China.Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.
Bare PCB Manufacturing and PCB Assembly
Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB......
FASTPCBA detailed PCB / PCBA capabilities are listed in the table below:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |
ICT AND FUNCTIONAL PCBA TESTING ENSURE PCB ASSEMBLY QUALITY
FASTPCBA is highly process focused, all PCB assemblies are verified for part-placement accuracy; the use of critical checks such as signal integrity, functionality and performance to test specifications are fully incorporated into our PCBA testing procedures. Comprehensive PCBA testing capabilities include functional PCBA testing equipment and in-circuit testing (ICT).
Do you have a questions or an issues we can help you with?
Let’s talk about your project and how FASTPCBA can help get your
electronic PCB or PCBA manufactured and ready for the market.
Submit your questions below and one of our electronic manufacturing
experts will answer you.
|
|
